Lötschablonen, Schablonen
(642 Ergebnisse)Lötschablonen und -schablonen sind Masken, mit denen Lötpaste in einem bestimmten Bereich auf einer Leiterplatte aufgetragen wird. Die Schablonentypen sind BGA, CSP, DFN, DFN/SON, FPC/FFC, HSOP, HTQFP, HTSSOP, LED, LED/DFN, LED/PLCC, LGA, LLP, LQFP, LSOP, Mini SOIC, MLP/DFN, MLP /MLF, MQFP, MSOP, PLCC, PLCC/JLCC, POS, PowerQSOP, PowerSOIC, PowerSSO, PowerSSOP, PQFP, PSOP, QFN, QFN/LFCSP, QSOP, RN, RQFP, SOIC, SON, SOP, SOT/SC, SSOP , TO/DDPAK, TO/DPAK, TQFP, TSOC, TSOP, TSSOP, TVSOP, uMAX, VSOP und VSSOP.
| Teil # | Hersteller | Beschreibung | Verfügbarkeit | Preisgestaltung | Menge |
|---|---|---|---|---|---|

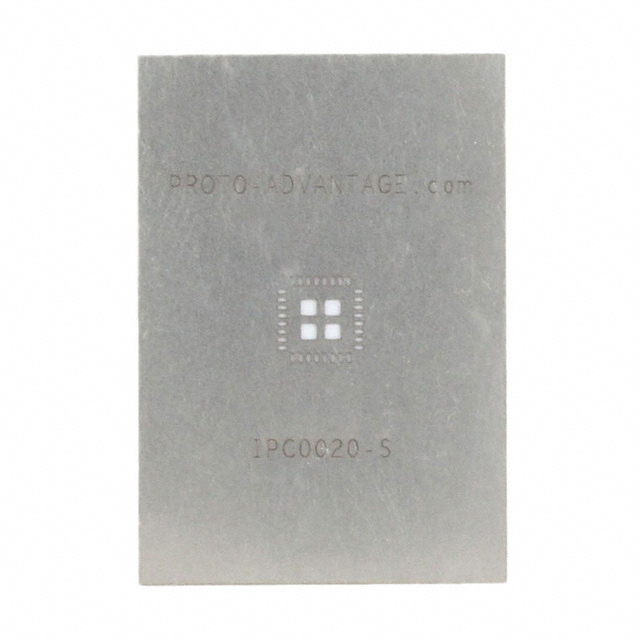

 IPC0020-SSolder Stencils, Templates | Chip Quik, Inc. | STENCIL 5X5 MM .5MM | 1 | - | |
 BGA0006-SSolder Stencils, Templates | Chip Quik, Inc. | STENCIL BGA-484 1MM | 10 | - | |
 IPC0014-SSolder Stencils, Templates | Chip Quik, Inc. | STENCIL 4X4MM .5MM | 1 | - | |
 PA0091-SSolder Stencils, Templates | Chip Quik, Inc. | STENCIL TQFP-32 .8MM | 4 | - | |
 PA0101-SSolder Stencils, Templates | Chip Quik, Inc. | STENCIL LGA-14 3X5MM .8MM | 22 | - | |
 PA0094-SSolder Stencils, Templates | Chip Quik, Inc. | STENCIL LQFP-48 .5MM | 5 | - | |
 BGA0027-SSolder Stencils, Templates | Chip Quik, Inc. | BGA-121 (0.65MM PITCH, 11 X 11 G | 1 | - | |
 DR040P010-SSolder Stencils, Templates | Chip Quik, Inc. | DUAL ROW 0.4MM PITCH 10-PIN CONN | Auf Lager | - | |
DR040P020-SSolder Stencils, Templates | Chip Quik, Inc. | DUAL ROW 0.4MM PITCH 20-PIN CONN | Auf Lager | - | |
DR040P030-SSolder Stencils, Templates | Chip Quik, Inc. | DUAL ROW 0.4MM PITCH 30-PIN CONN | Auf Lager | - | |
DR040P040-SSolder Stencils, Templates | Chip Quik, Inc. | DUAL ROW 0.4MM PITCH 40-PIN CONN | Auf Lager | - | |
DR040P050-SSolder Stencils, Templates | Chip Quik, Inc. | DUAL ROW 0.4MM PITCH 50-PIN CONN | Auf Lager | - | |
DR040P060-SSolder Stencils, Templates | Chip Quik, Inc. | DUAL ROW 0.4MM PITCH 60-PIN CONN | Auf Lager | - | |
DR040P070-SSolder Stencils, Templates | Chip Quik, Inc. | DUAL ROW 0.4MM PITCH 70-PIN CONN | Auf Lager | - | |
IPC0221-SSolder Stencils, Templates | Chip Quik, Inc. | DFN-12 (0.4 MM PITCH 2.5 X 2.5 M | Auf Lager | - | |
IPC0223-SSolder Stencils, Templates | Chip Quik, Inc. | LED-2 (2.75 MM PITCH 3.5 X 3.5 M | Auf Lager | - | |
IPC0224-SSolder Stencils, Templates | Chip Quik, Inc. | LED-2 (0.57 MM PITCH 1.0 X 1.0 M | Auf Lager | - | |
IPC0225-SSolder Stencils, Templates | Chip Quik, Inc. | DFN-8 (0.8 MM PITCH 3 X 3 MM BOD | Auf Lager | - | |
IPC0227-SSolder Stencils, Templates | Chip Quik, Inc. | LED-4 (0.85 MM PITCH 2.5 X 1 MM | Auf Lager | - | |
IPC0229-SSolder Stencils, Templates | Chip Quik, Inc. | LED-6/PLCC-6 (1.1 MM PITCH 3.3 X | Auf Lager | - | |
IPC0230-SSolder Stencils, Templates | Chip Quik, Inc. | LED-6/DFN-6 (0.65 MM PITCH 2 X 2 | Auf Lager | - | |
IPC0231-SSolder Stencils, Templates | Chip Quik, Inc. | LED-3 (1.1 MM PITCH 4 X 2 MM BOD | Auf Lager | - | |
IPC0232-SSolder Stencils, Templates | Chip Quik, Inc. | HTQFP-64 (0.8 MM PITCH 14 X 14 M | Auf Lager | - | |
IPC0233-SSolder Stencils, Templates | Chip Quik, Inc. | HTQFP-100 (0.5 MM PITCH 14 X 14 | Auf Lager | - | |
IPC0237-SSolder Stencils, Templates | Chip Quik, Inc. | HTQFP-48 (0.5 MM PITCH 7 X 7 MM | Auf Lager | - |
